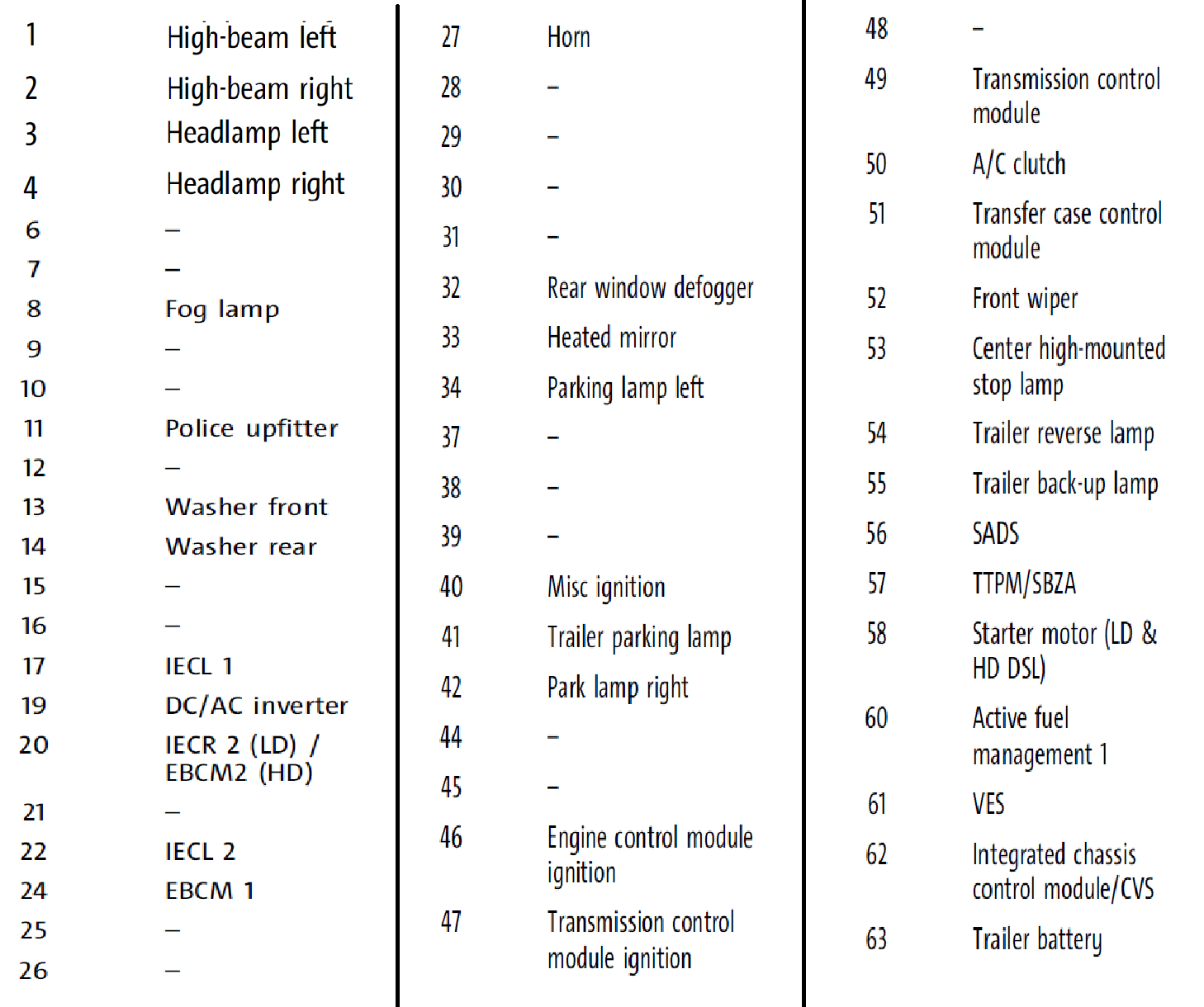

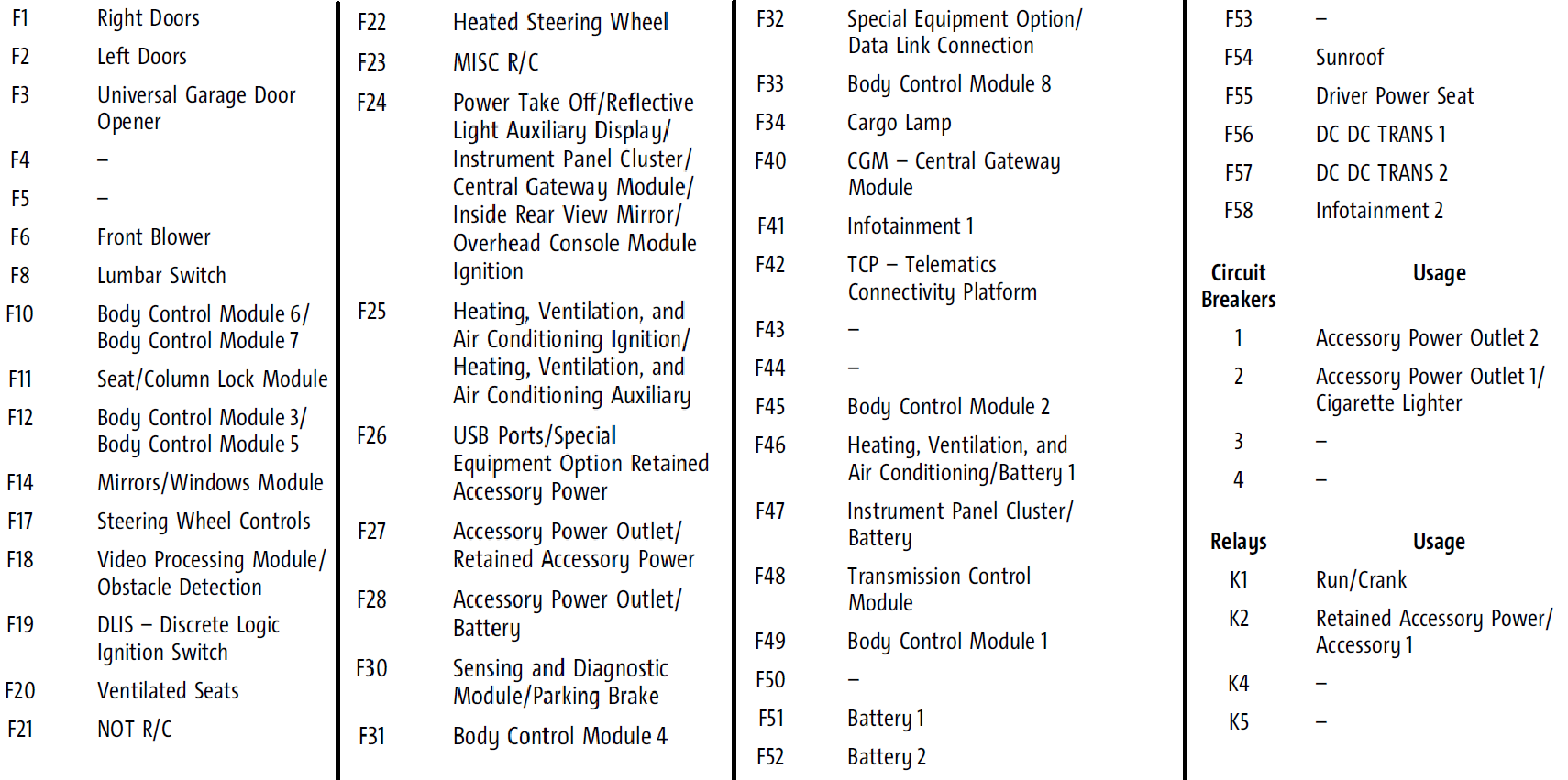

2022 GMC Sierra fuse box diagram. This Sierra has 4 different fuse boxes: Engine Compartment Fuse Block diagram. Instrument Panel Fuse Block (Left) diagram. Instrument Panel Fuse Block (Right - Front) diagram. Instrument Panel Fuse Block (Right - Back) diagram. Type No. Description; Fuse MINI . 3:. GMC Sierra (2021 - 2022) - fuse box diagram. Year of production: 2019, 2020. Engine Compartment Fuse Block. The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle.
![[DIAGRAM] 1992 Gmc Sierra 1500 Fuse Box Diagram](http://www.autogenius.info/wp-content/uploads/2016/12/gmc-sierra-fuse-box-engine-compartment-2007.jpg "[DIAGRAM] 1992 Gmc Sierra 1500 Fuse Box Diagram")
2022 GMC Sierra 1500 fuse box diagram. This Sierra 1500 has 4 different fuse boxes: Engine Compartment Fuse Block diagram. Instrument Panel Fuse Block (Left) diagram. GMC Sierra 1500 fuse box diagrams change across years, pick the right year of your vehicle: Doesn't match your car?Ask for your diagram. Found a mistake?.. DOT.report provides a detailed list of fuse box diagrams, relay information and fuse box location information for the 2022 GMC Sierra 4WD. Click on an image to find detailed resources for that fuse box or watch any embedded videos for location information and diagrams for the fuse boxes of your vehicle.
