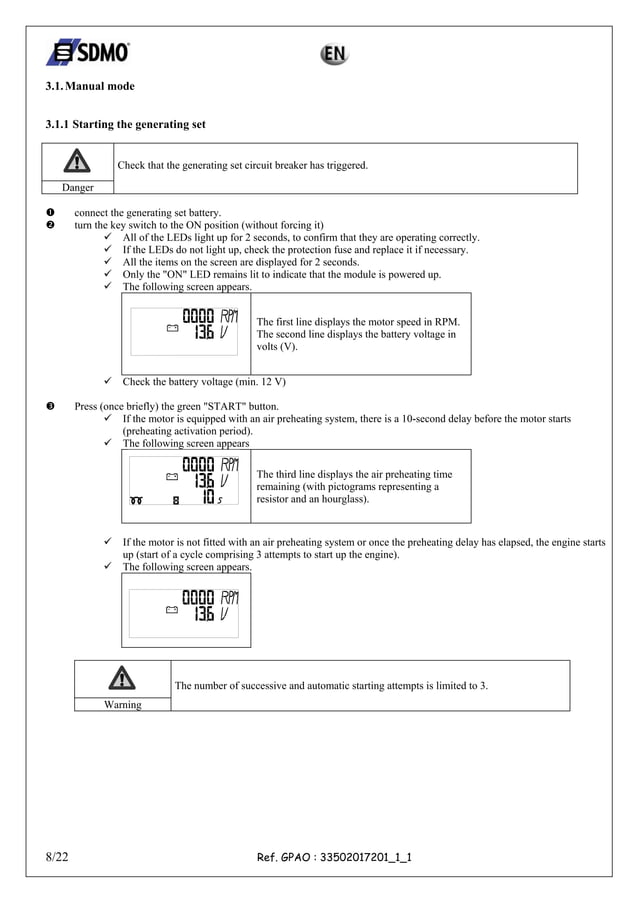

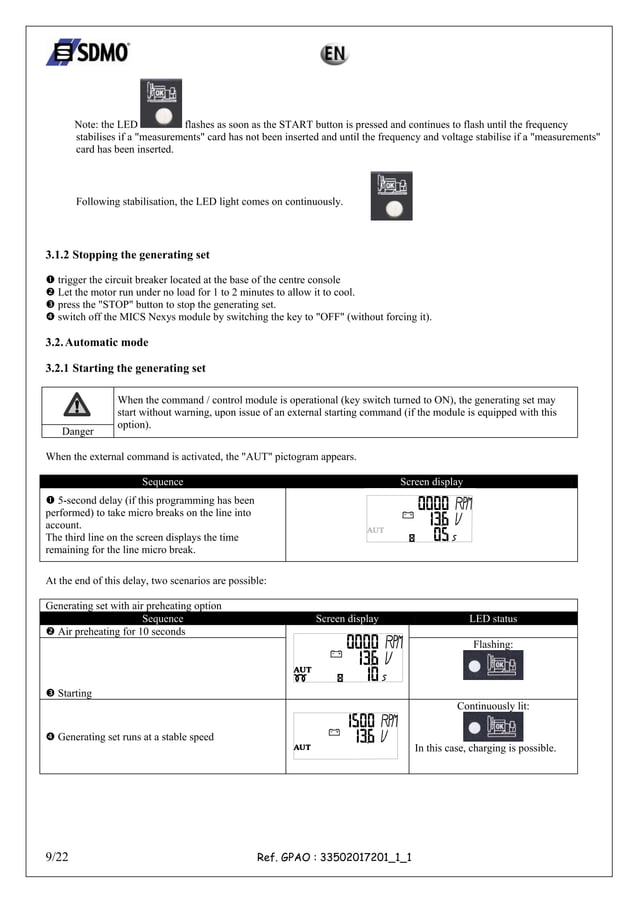

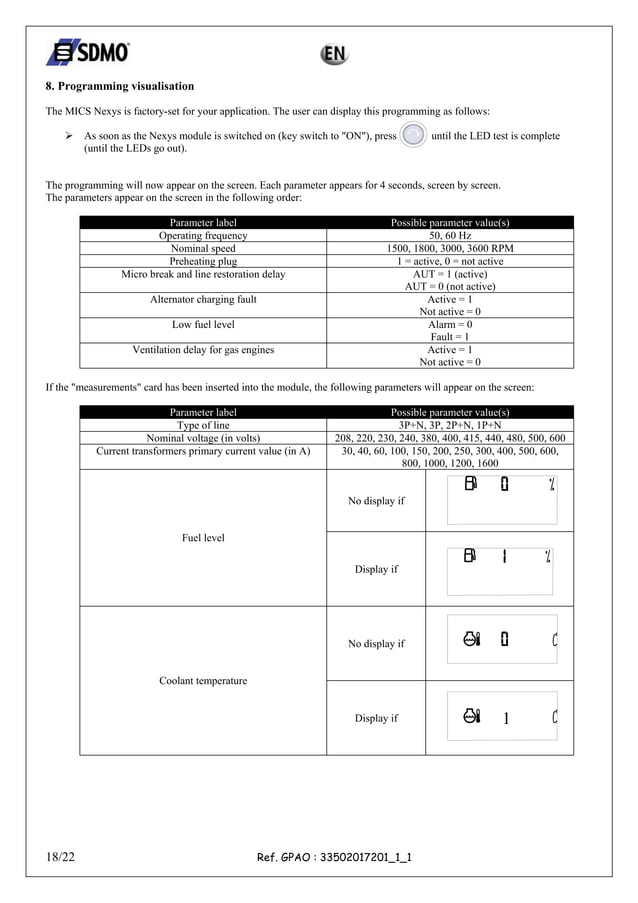

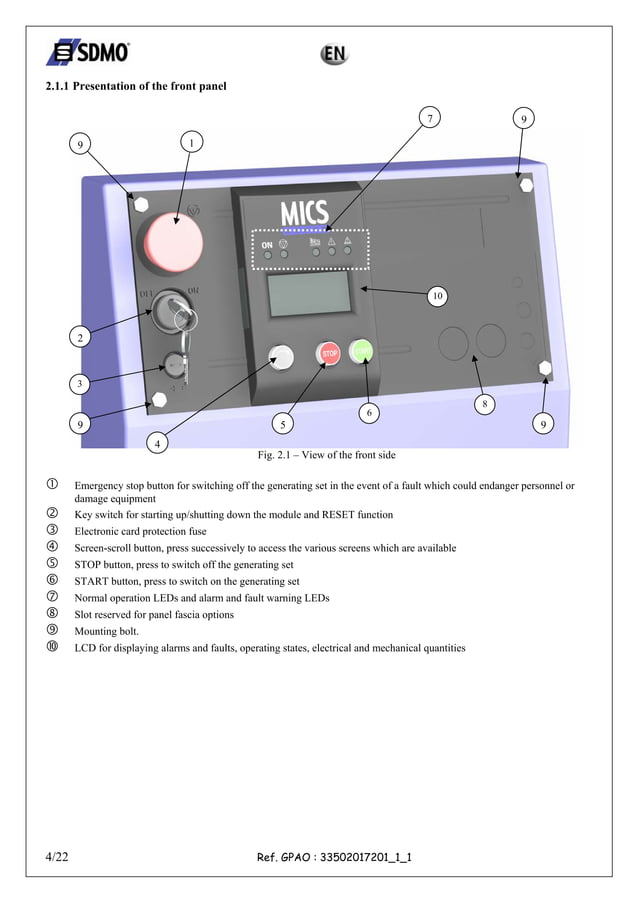

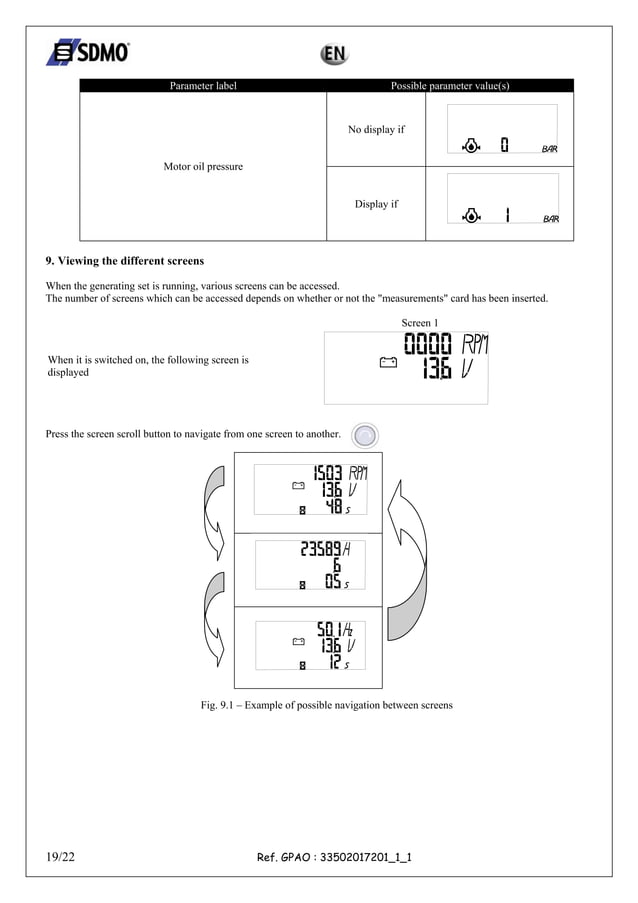

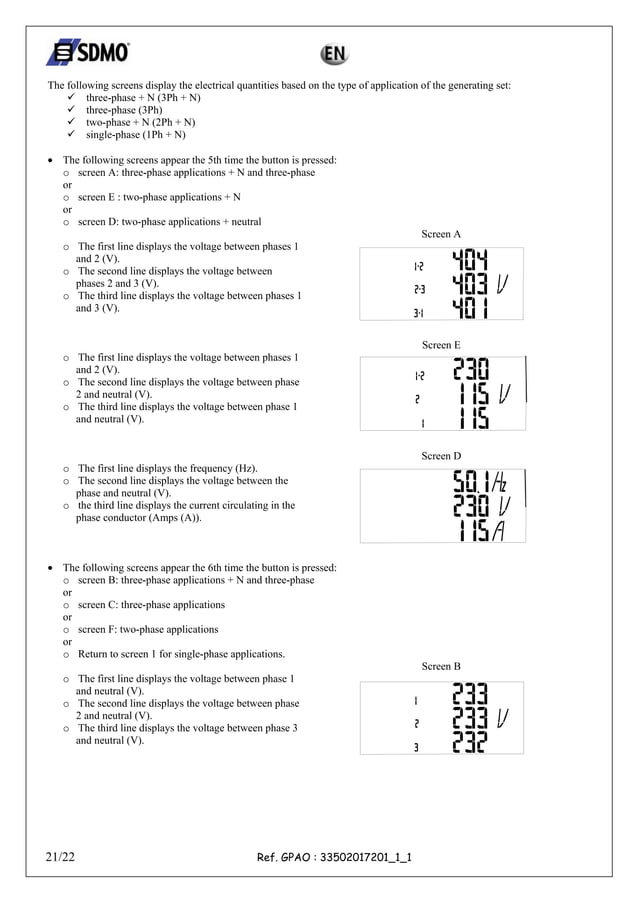

Page 3: Introduction To Mics Nexys 1. Introduction to MICS Nexys MICS Nexys is a command / control module designed to control the generating set. This module, with a 12V direct current supply, is incorporated into the following control consoles: N 2500 N 3500 N 4500 Circuit breaker rating ≤. Page 4: Presentation Of The Front Panel. Fig. 1.1 - View of control consoles 2. Description 2.1. Standard configuration The MICS Nexys comprises a polycarbonate control panel housing on which the following components are mounted: o on the front side: ¾ an emergency stop button ¾ a key switch for starting up or shutting down the entire module (ON/OFF) ¾ a protection fuse
The MICS NEXYS is SDMO's entry level control panel, proposed . as standard on our 7.5 to 275 kVA generator sets. Fitted with a polycarbonate front panel and an LCD screen, it has a user-friendly design and offers high quality features for simple and reliable control of your generator set. The MICS Nexys enables to operate both in manual or.. ME-AGS wiring diagram - For Hardy Diesel Generators with NEXYS control 2-28-2008a 5 amp fuse 24 volt Inverter battery Magnum Energy, Inc. provides this diagram to assist in the installation of the Auto-Generator Start controller. Since the use of this diagram and the conditions or methods of installation, operation and use are beyond the
