1995 Chevrolet S-10 fuse box diagram. Type No. Description; Fuse MINI . 20A: 25: Power Door Locks, Power Seat, Power Seat Lumbar, RKE. Fuse MINI . 30A: 26: Power Windows. Fuse MINI . 20A: 1:. Source: Chevrolet S-10 1995 Owner's Manual. Related guides. What is a fuse and what types can you find for your S-10? Log in Sign up. S-10.. DOT.report provides a detailed list of fuse box diagrams, relay information and fuse box location information for the 1995 Chevrolet S10 Pickup 2WD. Click on an image to find detailed resources for that fuse box or watch any embedded videos for location information and diagrams for the fuse boxes of your vehicle.

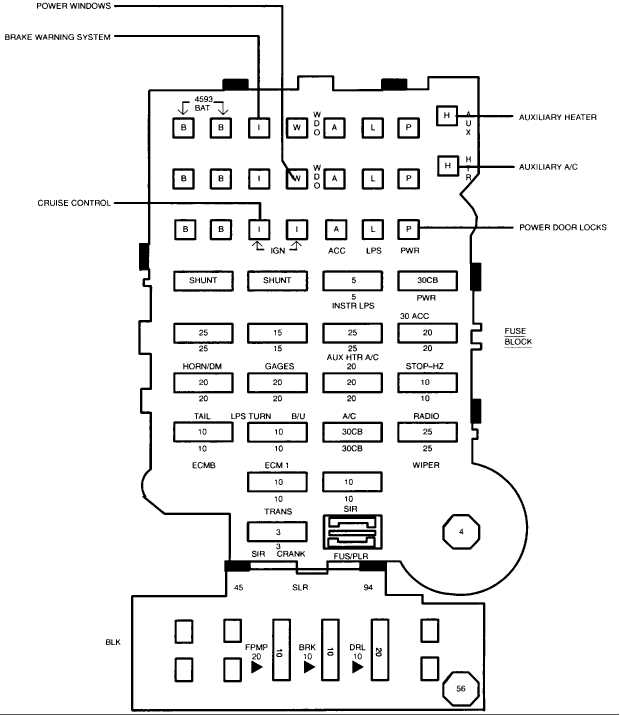

Chevrolet S-10 (1995) - fuse box diagram Year of production: 1995 Instrument panel The fuse block is in the instrument panel on the driver's side. Fuses/Circuit Breaker Name Circuit protected A PWR ACCY Power Door Locks, Power Seat, Power Seat Lumbar, RKE B PWR WDO Power Window 1 STOP HAZ Stop Lamps, Hazard Lamps, Chime, CHMSL Relay, CHMSL.. Chevrolet S-10 Pickup fuse box and relays diagrams. Explore interactive fuse box and relay diagrams for the Chevrolet S-10 Pickup. Fuse boxes change across years, pick the year of your vehicle: Fuse box diagrams 2003 S-10 Pickup. Fuse box diagrams 2000 S-10 Pickup.
